TIKKA T3 WATERS RIFLEMAN ELITE MATCH RIFLE TUBE STOCK, by David Waters - The perfect and ideal platform for any precision positional rifle match and competition shooter who demands an excellent and adjustable stock solution to mount a factory Tikka T3 or T3x short or medium rifle action (does not cycle the long action stroke).  This is the best encapsulating tube gun in the world.

______________________________________________________________________________________________

WATERS RIFLEMAN 5/6 and 8/10 SHOT MAGAZINES.
- TIKKA T3, T3X STANDARD
- TIKKA T3 CTR
- TIKKA T3 TAC-A1
- LITHGOW LA102 CROSSOVER RIFLE
- SAKO TRG-22
- BROWING X-BOLT
- HOWA 1500 SHORT ACTION / WEATHERBY VANGARD SHORT ACTION
- VERNEY CARRON SPEEDLINE
- AI & AICS IMPROVED
THE BEST MAGAZINE SOLUTION FOR A FACTORY SETUP AVAILABLE!
DROP IN RETRO FIT - NO MODIFICATIONS REQUIRED.

TIKKA T3 & T3X WATERS RIFLEMAN METAL MAGAZINE click here for full magazine range and item details...
     - Models specifically designed for the Tikka T3, T3X, CTR and TAC A1 family of rifles and the Lithgow LA102.
     - 5, 6, 8 and 10 round capacity of SAAMI specified dimensions of cartridges for the named cartridge suitable to the magazine (ie. the magazine will
         hold less than nominated for larger cases, eg. 10x 3006 holds 8x 300WSM).
     - 10 designs, specifically for the Tikka T3 and T3X rifle, 6 designs also fit the Lithgow LA102:
       - 223 Rem, 222 Rem, 204 Ruger, etc parent and similar family of cartridges at max 2.4" OAL.
       - 223 Rem parent and similar family of cartridges at max 2.6" OAL for loading long VLD type projectiles.
       - 6BR and 22-250 parent and similar family of cartridges.
       - 308 Win parent and similar family of cartridges such as 243 and 260.
       - x55/Long Taper and similar tapered cartridges eg 6.5x55 and 7x57, etc.
       - 30-06 parent and similar family of cartridges (eg. 270, 280, 9.3x62).
           * 30-06 mags also capable of 284 Win and family, WSM family, 300 Win Mag and other Magnum cartridges such as 7mm rem Mag, 338 Win Mag, etc.
     - Extended round length to allow loading with longer bullets and OAL.
     - Made of light weight aircraft aluminium, with a matte hard black anodised finish.
     - Easily disassembled for thorough cleaning and maintenance.
     - Reliable:  Stainless steel coil spring. Non-tip follower.  Easy loading and smooth feeding. Tune'able.
     - No more plastic magazine issues - premature wearing, rounds "sticking up"/"stove piping", mis-feeding, over-riding, etc.
     - A small price to pay for a PROVEN and TOP QUALITY magazine.
     - 5 year Warranty from defects in material or workmanship.

TIKKA T3 & T3X SINGLE ROUND LOADING BLOCK aka SINGLE SHOT BLOCK (not a sled)

- Tikka T3, T3X rifles
- Lithgow Crossover LA102 rifles,
Used to single round load the rifle.  Makes single feeding easy.  Made of lightweight synthetic material coming in at 75grams.
This single round loading block is suitable for any cartridge from the smallest cartridge (eg 222) to the largest magnum cartridges.  NO MODIFICATIONS REQUIRED.
NOTE: These units are made as a tight fit, to make a repeater rifle perform like a single shot.  The release lever tang is made slightly over-length to allow for previous wear.  If the block does not clip in first go, then simply file off 0.1mm increments from the SRLB tang until it clips in and out to your satisfaction (but it should be kept a tight fit).

MAJOR ADVANTAGES using a SRLB:
- Turns a repeater into a single shot, for accuracy development and ease of loading.
- Load testing and development.  Don't risk distorting or damaging your bullet tips or alignment issues while chambering test rounds during load development.
- Block the mag well to keep clean and free of foreign obstructions.
- When mag empty, drop the mag and insert the SRLB to quickly fire 1 extra round (save time in competition).
- Use while cleaning the rifle to block the mag well from splatter and debris.
- Has a flat bottom to use as a second stability point when shooting in the field (off car bonnet, roof, tree branch or stump, etc).
- Excellent for use as a palm rest while shooting offhand.
LATEST INFORMATION AVAILABLE FROM www.watersrifleman.com


(Gen 1, 2, 3 & 4 magazine info)

LITHGOW CROSSOVER LA102 WATERS RIFLEMAN METAL MAGAZINE click here for full magazine range and item details...
     - Models specifically designed for the Lithgow LA102.
     - 6 and 10 round capacity of SAAMI specified dimensions of cartridges for the named cartridge suitable to the magazine.
     - 40 designs, specifically for the Tikka T3 and T3X rifle, 6 designs also fit the Lithgow LA102:
       - 223 Rem, 222 Rem, 204 Ruger, etc parent and similar family of cartridges at max 2.4" OAL.
       - 308 Win parent and similar family of cartridges such as 243 and 260.
     - Extended round length to allow loading with longer bullets and OAL.
     - Made of light weight aircraft aluminium, with a matte hard black anodised finish.
     - Easily disassembled for thorough cleaning and maintenance.
     - Reliable:  Stainless steel coil spring. Non-tip follower.  Easy loading and smooth feeding. Tune'able.
     - No more plastic magazine issues - premature wearing, rounds "sticking up"/"stove piping", mis-feeding, over-riding, etc.
     - A small price to pay for a PROVEN and TOP QUALITY magazine.
     - 5 year Warranty from defects in material or workmanship.
LATEST INFORMATION AVAILABLE FROM www.watersrifleman.com

___________________________________________________________

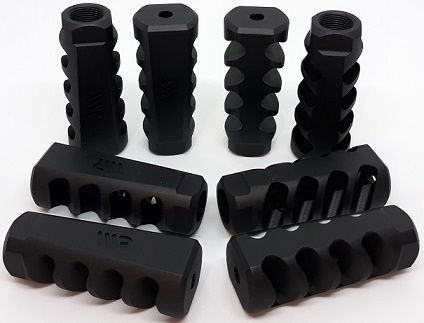

WATERS RIFLEMAN WR MUZZLE BRAKES Designed by science, perfected by experience, proven by results.

NO MORE GETTING RIPPED OFF eg. PAYING $300 FOR A PIECE OF THREADED STEEL WITH HOLES IN IT.

The WR ULTRA COMP / GAS MONGREL / GAS MONGREL MAGNUM muzzle brakes come "off the shelf" ready to win matches.  They reduce recoil so you can shoot and watch your bullet trace or impact area and splash. WR Muzzle Brake are:
       - Threads available   1/2x28,   5/8x24,   3/4x24,   7/8x24,   M14x1,   M18x1.
       - All thread depths are 16mm / 0.63” (eg. standard average for 5/8" is 0.6").
       - Material:             Made of 7075 aluminium.
       - Finish:                Hard black anodised.
       - Concentricity: Spec of plus or minus 0.05mm.
       - Heat dissipation:  Aluminium will rapidly remove heat from the reduced barrel muzzle thread to minimise
          bore distortion (ie. maintain shot to shot accuracy).
       - Shock pressure:   Very dependent on muzzle energy and gas volume.  Without getting too complicated, the
          blast is much less than the brakes on market that delivery similar recoil reduction.
       - Fitting with crush washers is not recommended for clocking.  Muzzle Brakes should be fitted and checked by
         an experienced gunsmith and fitted with appropriately sized shims.
       - Clean using any hydrocarbon base fluid that is safe.  Brake should be removed to clean, likewise the brake should
          be removed to clean your barrel.
       - Design is completely by science to get the most out of every input.  Units have been proven with testing and absolute results.  No guess work.
       - Comparisons: Tested against all the big names in brakes.  While many brakes are good, the WR units are specifically designed for purpose.

WR GAS MONGREL MUZZLE BRAKE (THE BEST IN THE WORLD!) is the ultimate in braking recoil for up to 30 calibre.  This unit is indiscriminating, unforgiving, and ignores everything except the one thing it does best – reducing brake.  The gas is directional, heaving reducing both recoil and muzzle jump.  Turns a 300 Win Mag into a 223…  THIS IS THE BEST MUZZLE BRAKE IN THE WORLD.
If this were made by anybody else, it would sell at OVER $400...
- Bore sizes:        Up to 6mm (243) (6.8mm bore).    6mm (243) to 7mm (284) (7.8mm bore).   7mm up to 30 cal (308) (8.8mm bore).
- Weight:             65g / 2.3oz. Light weight.  Minimise barrel harmonic chase for non-braked loads.
- Length:             Approx 75mm/ 2.95” long.
- Dia:                  Tapered body, approx 34mm dia at muzzle, 22mm at rear to a 22mm set of flats for wrench tightening.  Maximising performance from size and proportion.
- THREADS:        Comes in 1/2x28, 5/8x24, 3/4x24, M14x1, M18x1.
- Porting:             4 huge ports, heavily angled, with 2x2 port sizes in height and length to work gas-against-gas to reduce felt muzzle blast shock.

PERFORMANCE
- Recoil reduction: Approx 71 to 82% reduction, depending on barrel gas pre-load volume, bullet length, parallel body length and bullet exit energy.
- Vertical jump:     Approx 74 to 89% reduced, depending barrel twist (centrifugal momentum) and bullet energy.
- Shooter comfort: With massive recoil reduction, the main comfort consideration is the blast.  If the shooter is outdoors (recommended), and uses ear plugs and ear muffs, then the blast is widely reported by the many users as completely acceptable.
- Use: For competition and championships where excess recoil will directly affect maximising a potential result and muzzle blast important but not as critical.  Maximises the ability to keep sights at the target looking for bullet flight vortex and bullet impact by massive reductions in recoil and muzzle jump/movement. Typically used for bullet impact sighting type matches such as ELR, Steel Challenge, PRS, Head Hunter, etc.  Not recommended for indoor shooting.
- Advantages: Offers maximum brake, best case muzzle blast reduction, lightweight and barrel heat dispersing (minimise elongation).  Offers considerably more efficiency and performance than brakes in a similar size/class.  There is NO muzzle brake in the world better than this (except the Magnum Gas Mongrel).
- PRICE:             AVAILABLE NOW.
LATEST INFORMATION AVAILABLE FROM www.watersrifleman.com

WR GAS MONGREL MAGNUM MUZZLE BRAKE... (THE BIG ONE...ON STEROIDS!). The ultimate of the ultimates...  This is simply the WR Gas Mongrel, but approx 30% bigger, ported for 7mm up to 40cal.  If the Gas Mongrel makes a 300 Win Mag feel like a 223, this is sure to please!  This was made so the best muzzle brake in the world could be used on the much larger cartridges and calibres.
If this were made by anybody else, it would sell at OVER $400...
- Bore sizes:       7mm up to 30 cal (308) (8.8mm bore).  30 cal (308) up to 338 cal (9.5mm bore).  338 cal up to 375 cal (10.5mm bore).
- Weight:             80g / 2.5oz. Light weight.  Minimise barrel harmonic chase for non-braked loads.
- Length:             Approx 85mm/ 3.35” long.
- Dia:                  Tapered body, approx 36mm dia at muzzle, 28mm at rear to a 25mm set of flats for wrench tightening.  Maximising performance from size and proportion.
- THREADS:        Only comes in 3/4x24 and 7x8x24.  Intention is for the large profile barrels such as Heavy PALMA, Heavy Varmint, #10, Parallels, etc.
- Porting:             4 huge ports, heavily angled, with 2x2 port sizes and scientifically shaped to work gas-against-gas to reduce muzzle blast that would be felt by the shooter.

PERFORMANCE
- Recoil reduction: Approx 73 to 88% reduction, depending on barrel gas pre-load volume, bullet length, parallel body length and bullet exit energy.
- Vertical jump:     Approx 78 to 93% reduced, depending twist and bullet energy.
- Shooter comfort: With massive recoil reduction, the main comfort consideration is the blast.  If the shooter is outdoors (recommended), and uses ear plugs and ear muffs, then the blast is widely reported by the many users as completely acceptable.
- Use: For use on the large guns, with large barrels.  competition and championships where excess recoil will directly affect maximising a potential result and muzzle blast important but not as critical.  Maximises the ability to keep sights at the target looking for bullet flight vortex and bullet impact by massive reductions in recoil and muzzle jump/movement. Typically used for bullet impact sighting type matches such as ELR, Steel Challenge, PRS, Head Hunter, etc.  Not recommended for indoor shooting.
- Advantages: Offers maximum brake, best case muzzle blast reduction, lightweight and barrel heat dispersing (minimise elongation).  Offers considerably more efficiency and performance than brakes in a similar size/class.  There is NO muzzle brake in the world better than this.
- PRICE:              AVAILABLE NOW.
LATEST INFORMATION AVAILABLE FROM www.watersrifleman.com

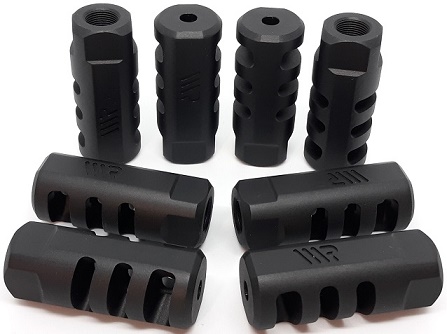

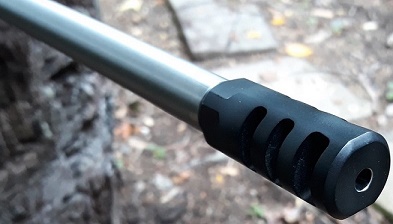

WR ULTRA COMP BRAKE SLICK AND SLIM...the baby brother, but reduces recoil like nothing in it's class.  The WR Ultra Comp is a brake designed for the competitive shooter who needs a balance of all the qualities a muzzle brake should offer.  This brake is designed with total science in mind, to give the best average performance balancing recoil reduction, minimal ground dust disturbance, shock/blast comforts for competitive practical, tactical and target applications.
- Bore sizes:         Up to 6mm (243) (6.8mm bore).    6mm (243) to 7mm (284) (7.8mm bore).   7mm up to 30 cal (308) (8.8mm bore).
- Larger calibres will require the brake bore to be reamed.  This is a free service at time of order...just ask.
- Weight:               55g / 1.95oz.  Light weight.  Minimise barrel harmonic chase for non-braked loads.
- Length:                Approx 63mm / 2.48” long.
- Dia:                     Approx 26mm for push-thru shooting.  Parallel body with lead edges for less catch on withdraw, etc.
- THREADS:          Comes in 1/2x28, 5/8x24, 3/4x24, M14x1, M18x1.
- Porting:               3 progressive ports, slight negative angle, with varying port sizes in height and and length to work gas-against-gas that helps reducing felt blast for shooter comfort.
- Recoil reduction: Approx 55 to 71% reduction, depending on barrel gas pre-load volume, bullet length, parallel body length and bullet exit energy.
- Vertical jump:      Approx 66 to 78% reduced, depending barrel twist (centrifugal momentum) and bullet energy.
- Shooter comfort:  Considering the amount of brake, comfort is approx equal to a typical brake twice its size with less recoil reduction.
- Use: For competition and championships where minimising recoil AND muzzle blast is important but also being able to stay on target to see bullet impacts.
- Advantages: Balance between brake and blast effect, slimline for speed and practical movement, lightweight and barrel heat dispersing (minimise elongation).  Offers above average performance compared to other brakes of similar size and design.
- PRICE:                AVAILABLE NOW.
LATEST INFORMATION AVAILABLE FROM www.watersrifleman.com

_________________________________________________________________________________________________________________________

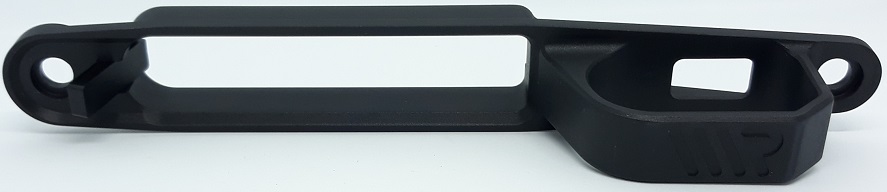

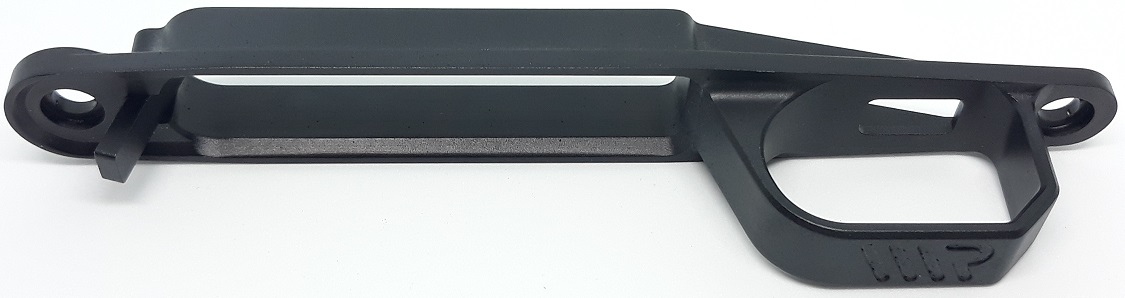

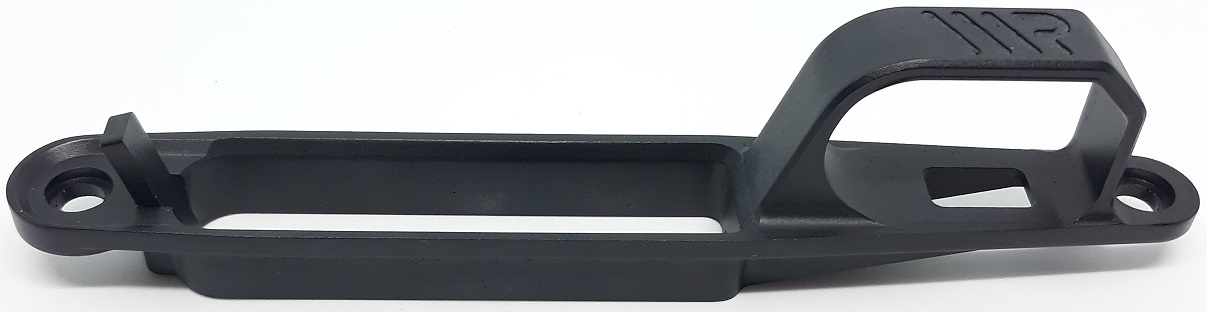

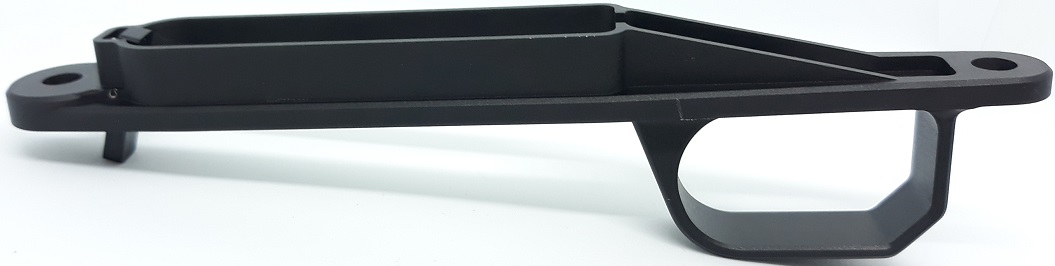

WR TIKKA T3 TACTICAL FLOORPLATE BOTTOM METAL TRIGGER GUARD (truly tactical)
Development started in 2011, with it having common features to everything else on the market, it was shelved.  After sitting idle for 2 years, the evolution in practical shooting reinvigorated this latest design as a “tactical” floorplate.  Now, the T3 platform can be simply transformed into something more, increasing its diversity to supported and practical styles of shooting, while maintaining its inherent lightweight assembly.  Some of the WR floorplate advantages are:
-          Longer release leaver, for simple and rapid mag changes (longer by approx 8mm (5/16")).
-          Larger trigger guard for shooting with a glove, and wider trigger guard as a possible support.
-          Stainless Steel hex head take-down bolts.
-          Heavily chamfered mag port entry for speed of inserting the magazine, and direct feed ramp from front of trigger guard.
-          Wider trigger entry slot for wider aftermarket triggers levers.
-          Aluminium 7075 material, finished in hard black anodise.  Well weighted release spring.
-          Weight 65g / 2.3oz.
- PRICE:                AVAILABLE NOW.
LATEST INFORMATION AVAILABLE FROM www.watersrifleman.com

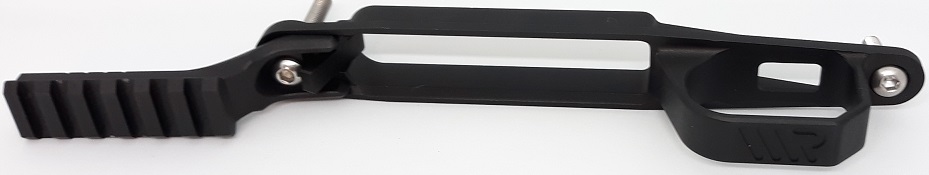

WR TIKKA T3 TACTICAL FLOORPLATE PICATINNY RAIL AD-ON… BUT, WHAT MAKES IT TACTICAL?  Simply slot in and bolt on of a bottom pic rail.  It does not affect mag operation, and allows the attachment of many pic rail type mount accessories – such as bi-pods, barricade supports, dope card holders, sling swivels, flashlights, laser sights, grips, etc.  Machined from solid billet 6061-T6 and hard black anodised. Weight 40g / 1.4oz.
- PRICE:                AVAILABLE NOW.
LATEST INFORMATION AVAILABLE FROM www.watersrifleman.com

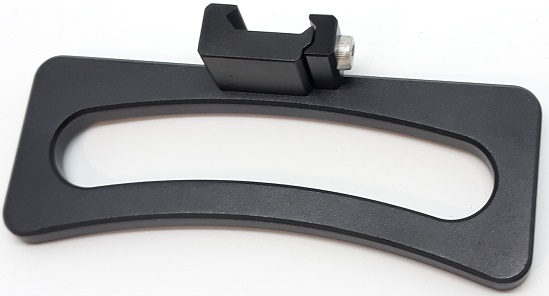

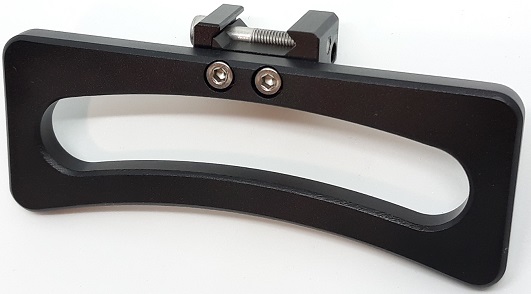

WR BARRICADE WING STOP and SUPPORT STOP - PIC RAIL MOUNTED… This simply bolts onto your under carriage pic rail, and wings out the sides to allow the simple holding of the rifle against a vertical or horizontal support (such as a post, wall, log, etc).   The barricade support also has a slot through the curved axis for finger and thumb through control techniques.  Left and Right hand version available (based on the pic rail clamping piece direction).  Machined from solid billet 6061-T6 and hard black anodised. Weight 100g / 3.52oz.
- PRICE:                AVAILABLE NOW.
LATEST INFORMATION AVAILABLE FROM www.watersrifleman.com

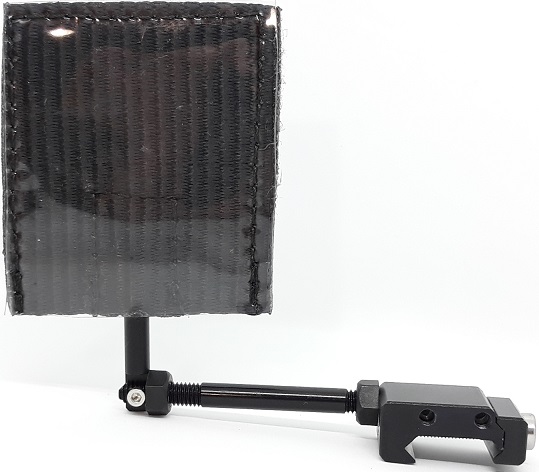

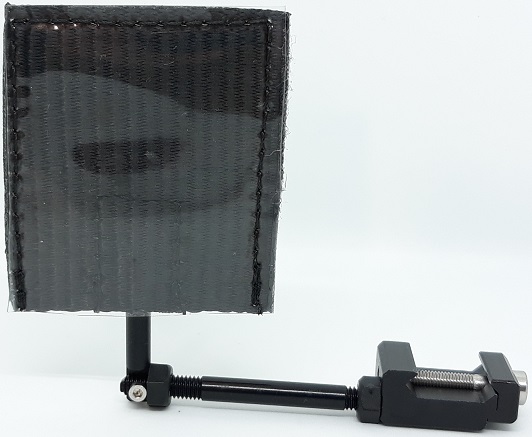

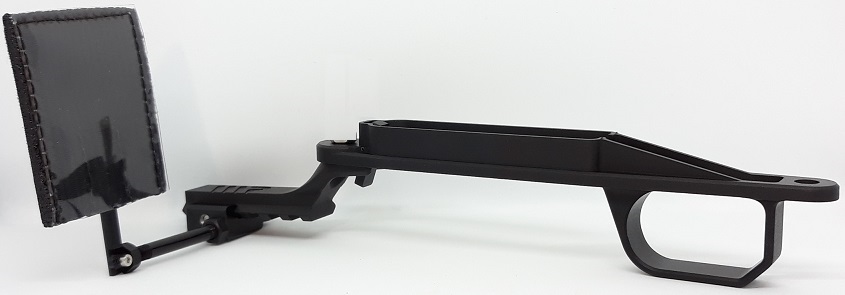

WR DOPE CARD HOLDER – RIGID PIC RAIL MOUNTED… This dope card is mechanically armed in 6061-T6 Aluminium that is hard black anodised.  All fasteners are SS 304.  Synthetic webbing and clear PVC window dope card holder that can quickly rotate on the arm around 180 degrees with the pinch of a slack nut.  Allows fixing off a pic rail (undercarriage or across the top of stock).  If the rifle system is too wide, the mechanical arm can be adjusted out for more length. Left and Right hand versions available. Weight 45g / 1.6oz.
- PRICE:                AVAILABLE NOW.
LATEST INFORMATION AVAILABLE FROM www.watersrifleman.com

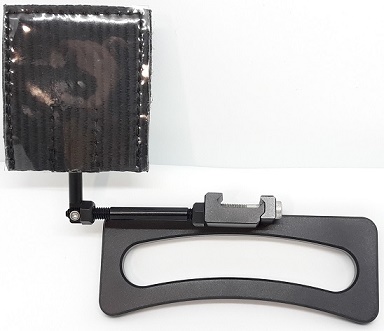

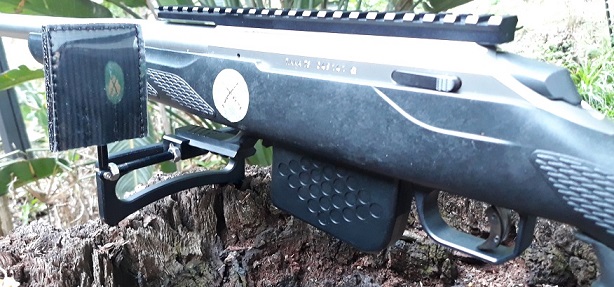

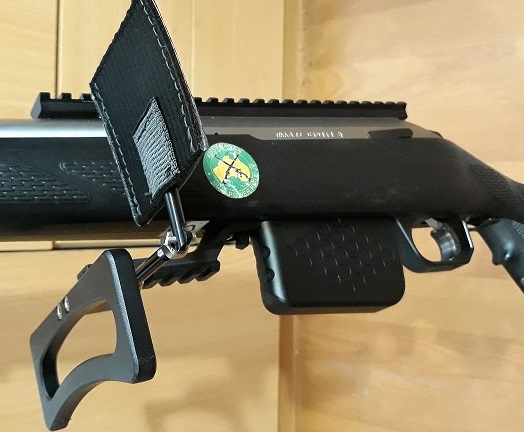

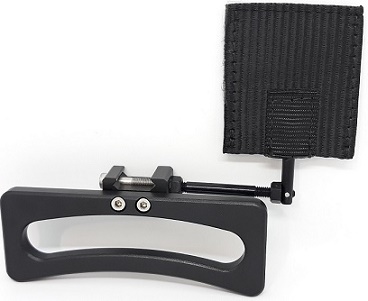

WR RIGID DOPE CARD HOLDER INTEGRATED WITH THE WR BARRICADE SUPPORT STOP… Get both the WR rigid dope card with a WR barricade support stop with both items sharing the same pic rail mount.  Reduces congestion and weight on the gun.
- PRICE:                AVAILABLE NOW.
LATEST INFORMATION AVAILABLE FROM www.watersrifleman.com

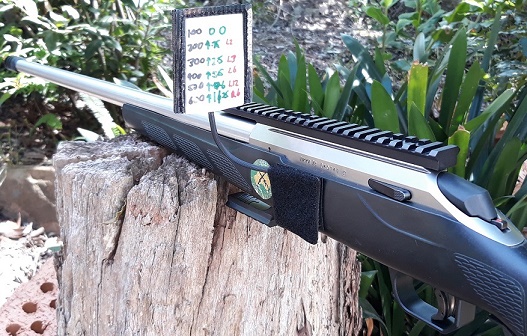

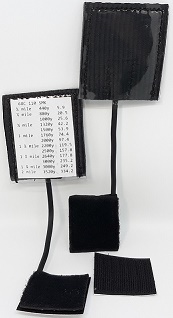

 WR DOPE CARD HOLDER – FLEXIBLE VELCRO MOUNT… This oldie has returned, rejuvenated after many requests.  This is a soft flexi dope card holder, made of synthetic webbing and clear PVC, and connected to the firearm using an adhesive Velcro patch, joined with a coated pliable wire.  Simply mount this to the stock, and bend the connecting wire to position the card window to where suits you best. Weight 30g / 1.1oz.  Use 1 only card, and just fit the opposite mating velcro to multiple rifles - ie. buy 1 unit and use on all your rifles.
- PRICE:                AVAILABLE NOW.
LATEST INFORMATION AVAILABLE FROM www.watersrifleman.com

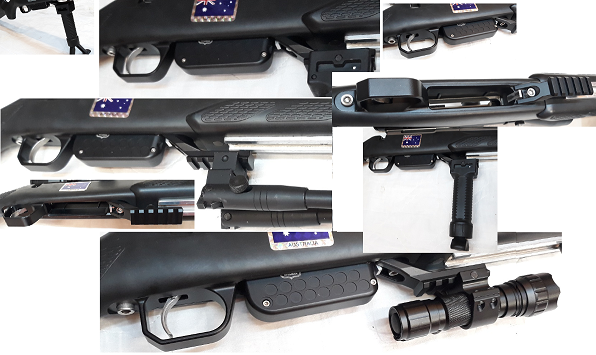

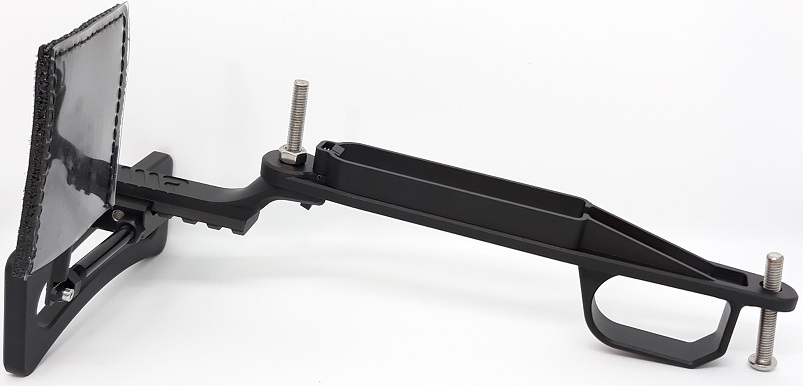

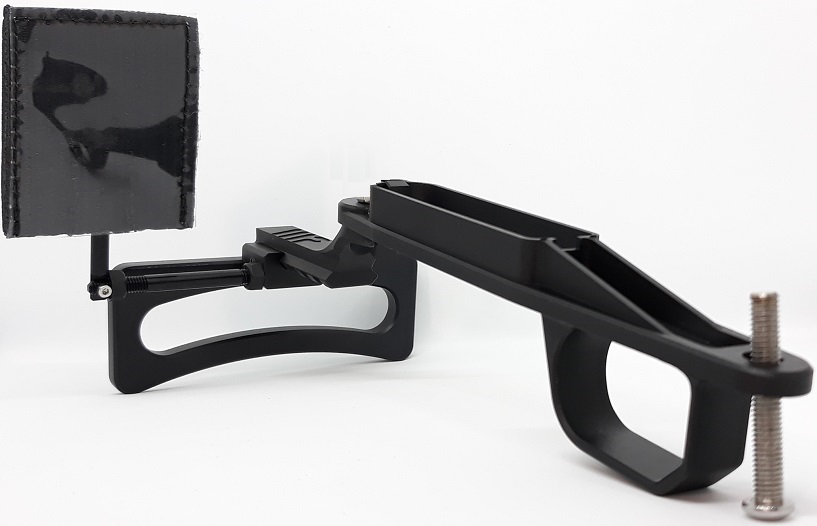

WR TACTICAL PIC RAIL ACCESSORY COMBINATIONS (click to expand):
The WR Dope Card (rigid) mechanical arm can wind in to the barricade support stop to make a combo using just 1 pic rail mount.

________________________________________________________________________________________________________________

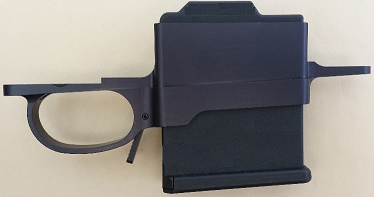

WR HOWA 1500 FLOORPLATE BOTTOM METAL TRIGGER GUARD with AI magwell chute
Development started in 2013, but thanks to some local input, the final design is done and test units have been in the field for the last 7 months.  All results are positive.
This floorplate is made to take the AI design magazine.  NOTE, for HOWA solutions, the WR AI magazine is highly recommended because it fits into a 1500 using this floorplate WITHOUT MODIFICATION (ie. a drop in solution) to the top rear of the magazine to work around the HOWA receiver boss.
Some of the WR floorplate advantages are:
-          Long release leaver, for simple and rapid mag changes.
-          Larger trigger guard for shooting with a glove, and wider trigger guard as a possible support.
-          Stainless Steel hex head take-down bolts.
-          Heavily chamfered mag port entry for speed of inserting the magazine.
-          Aluminium 7075 material, finished in hard black anodise.  Well weighted release spring.
-          Extended integrated magazine well to ensure smooth and effective operation and remove .
-          Weight 110g / 3.88oz.
- PRICE:                AVAILABLE NOW.
LATEST INFORMATION AVAILABLE FROM www.watersrifleman.com


_________________________________________________________________________________________________________________________

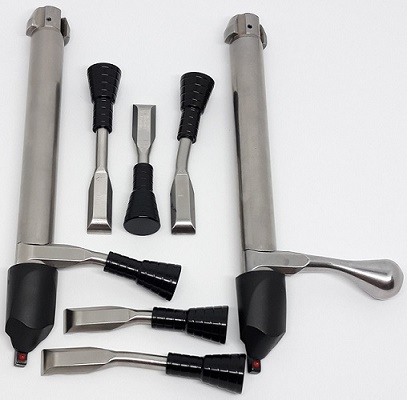

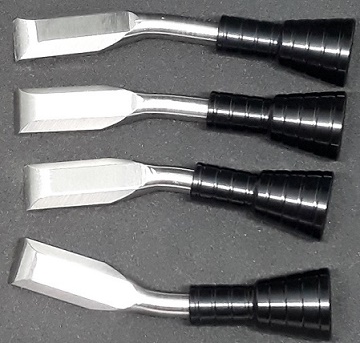

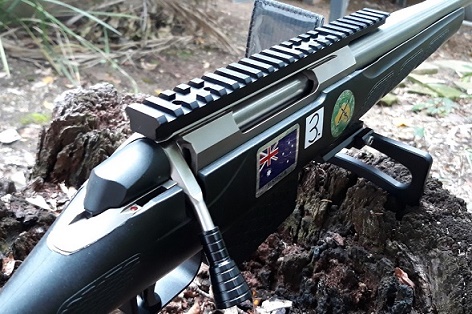

WR TIKKA T3 T3X TACTICAL BOLT HANDLE AND KNOB (TRULY TACTICAL).  This Waters design principle began back in 2003 when some Remington 700 adjustable bolt handles for bench and bag guns were made for rapid shooting in switching conditions (probably years ahead of itself).  But now, there seems to be so much interest in "tactical bolt knobs" (whatever that means?), that I decided to re-release my bolt knob solution for the Tikka T3 T3x to show what a "tactical bolt knob" should be...ie. one can tactically adjust to better suit their needs based on their shooting conditions.
A standard bolt handle/knob sticks out approx 55mm (2.1”) from edge of bolt radius.  This WR tactical bolt handle adjusts (on the fly) from approx 55mm (2.1”) to approx 72mm (2.83”) - offering a total adjustment range of approx 17mm.  You choose what you need...
The bolt handle is 304gr SS.  The knob is 7075 alum hard black anodised, and shaped in such a way that any finger can catch the knob and not slip off, with circular recesses to aid grip.
MAJOR ADVANTAGE, this bolt handle will also extend to allow you to work the bolt cycle much quicker, while making it easier to stay on target, by allowing  the shooter to keep the index finger on the bolt while using the middle finger to operate the trigger (takes a few minutes to get used to, but worth the practice).
Weight 30g / 1.06oz.
Available in LEFT, RIGHT and STRAIGHT versions (straight gives more room behind the bolt area).
- PRICE:                AVAILABLE NOW.
LATEST INFORMATION AVAILABLE FROM www.watersrifleman.com

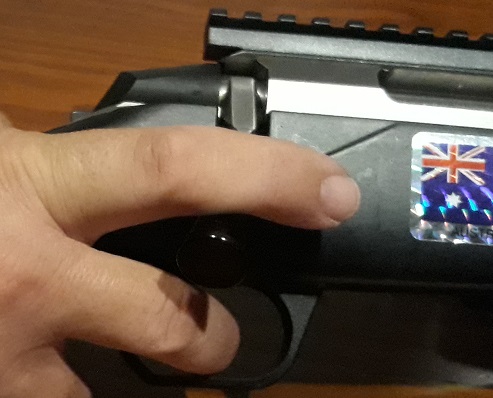

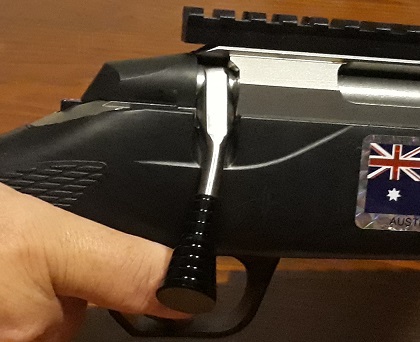

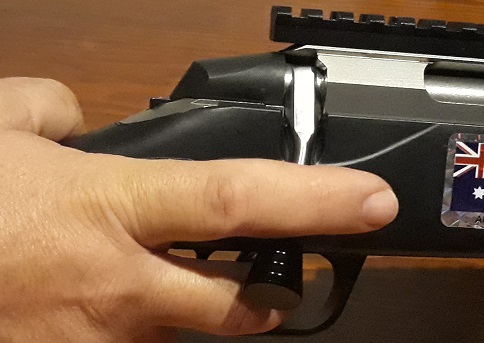

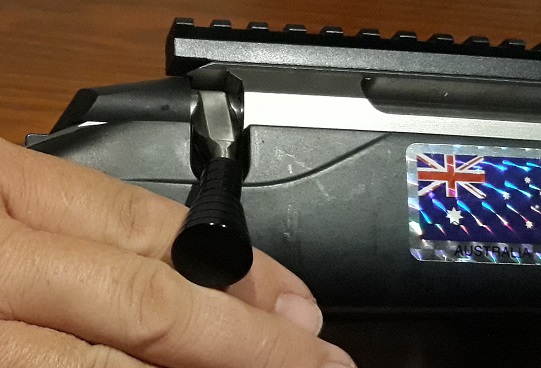

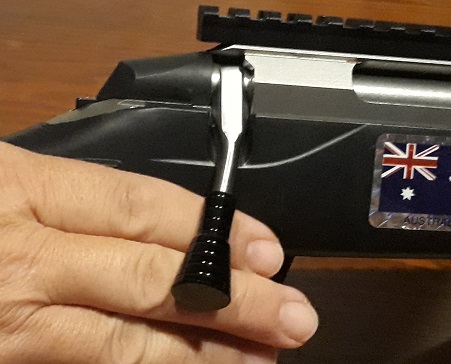

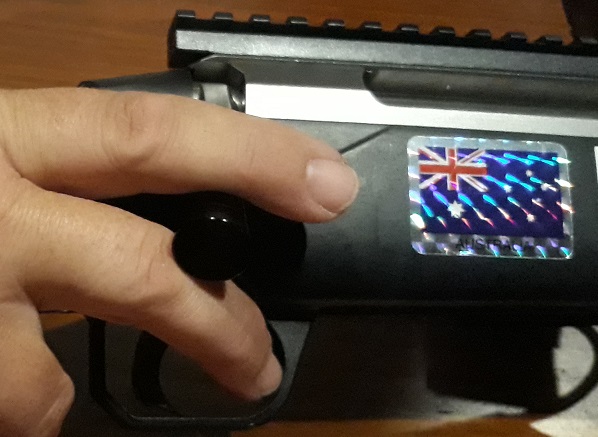

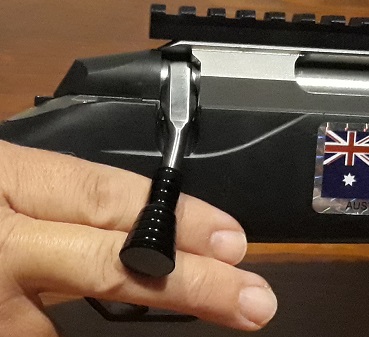

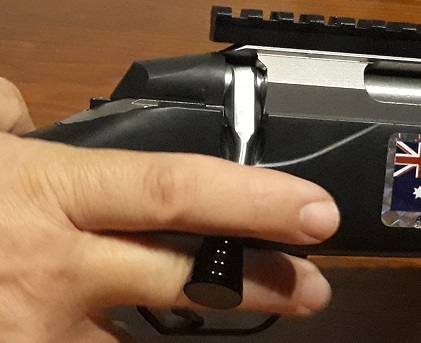

HOW TO USE THE WR T3 TACTICAL BOLT HANDLE AND KNOB FOR SPEED...  See these 3 sets of pictures with the knob at different lengths - NOTE the hand position, relative to the trigger, the bolt knob, etc...

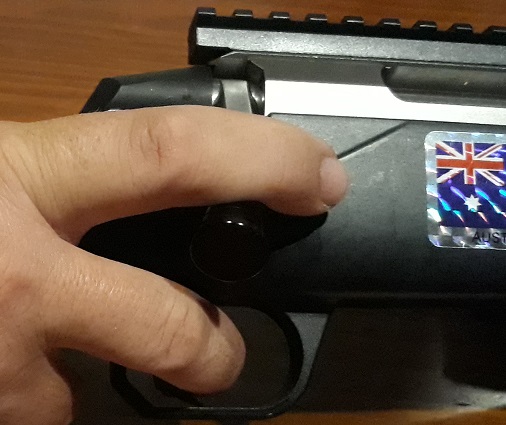

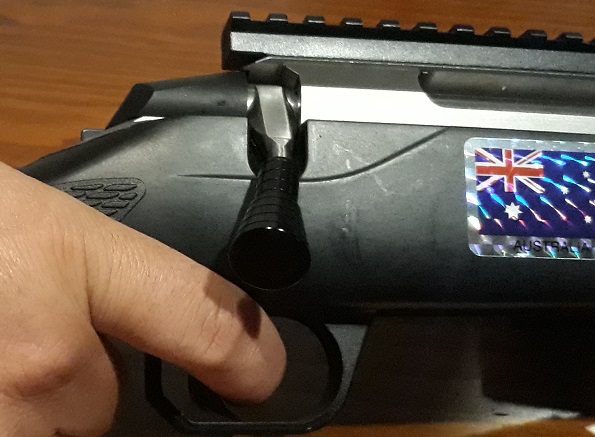

     * BOLT KNOB WOUND IN (to same length as factory T3).

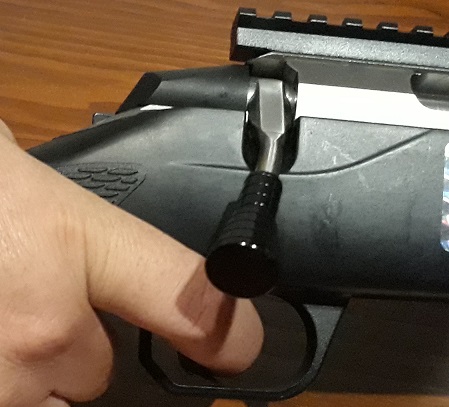

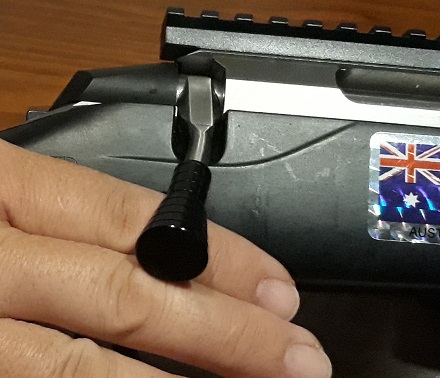

     * BOLT KNOB WOUND HALF-WAY. offers lots of leverage and increased cycle speed.

     * BOLT KNOB WOUND ALL WAY OUT. allows single finger operation.

_________________________________________________________________________________________________________________________

MOLYBDENUM DISULPHIDE SUPERFINE POWDER.  Available in 100g bags.  This Molybdenum Disulphide powder, mostly referred to as moly powder, is 99% pure, and is superfine to quickly moly coat your bullets using both the dry and wet methods.
- PRICE:                AVAILABLE NOW.
LATEST INFORMATION AVAILABLE FROM www.watersrifleman.com


_________________________________________________________________________________________________________________________

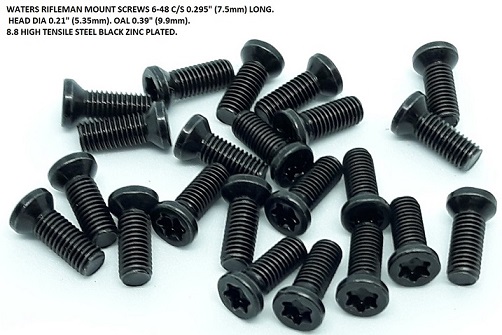

BASE & MOUNT 6-48 GUNSMITH SCREWS.
- 6-48 UNEF( #6 x 48 tpi).
- 8.8 high tensile steel.
- Finished in a rich black zinc coating to help prevent rust.
- Head is countersunk C/S.
- T15 Torx socket (T15 for size and strength of both tightening and the tool life).
- OAL 9.85mm / 0.39”.    Thread length 7.4mm / 0.29”.
- Used: Where a high strength quality screw is needed.  Swap out current T10 and T9 screws with these T15s.  If screws a little on the short side in thru holes, these longer screws may use up available thread to minimise carbon build up (ie. Plug the hole).  If screws are oversize, simply grind back the length.
- PRICE:                AVAILABLE NOW.
LATEST INFORMATION AVAILABLE FROM www.watersrifleman.com

_________________________________________________________________________________________________________________________

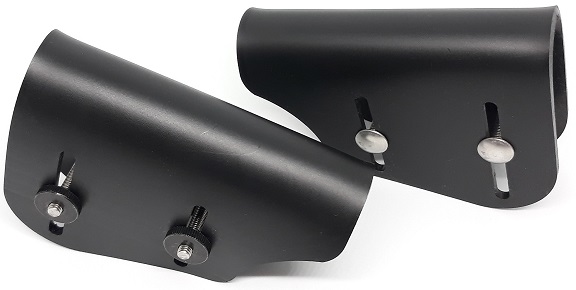

WR SIMPLE ADJUSTABLE CHEEK PIECE.  This was first made by Waters in 2003, when XC started to be shot as organised matches.  The adjustable match sights meant more height was needed for a good cheek weld.  This is now a common simple slip over and easily adjustable solution.
MAJOR ADVANTAGE, this is comfortable, easy to fit and can be quickly adjusted BUT ALSO, the plane for the cheek to ride on can also be angled for when a lot of elevation (such as with the WR ELR adjustable sight base) is applied to the rifle, the cheek piece can remain parallel with the sights/scope.
Made from very soft plastic, with smooth matte finish, and all edges are melt-rolled - very comfortable on the face under recoil.  Fitting is simply drilling 2 holes through the butt of the stock, slipping the cheekpiece over, then putting the 2x SS square head bolts through and hand tighten with the 2x steel thumb nuts.
Weight 95g / 3.35oz.
Universal fit on all rifles without a comb, and just swap the bolt direction for LEFT and RIGHT orientation simply by loosening the thumb nuts (no tools required for adjustments).
- PRICE:                AVAILABLE NOW.
LATEST INFORMATION AVAILABLE FROM www.watersrifleman.com

_________________________________________________________________________________________________________________________

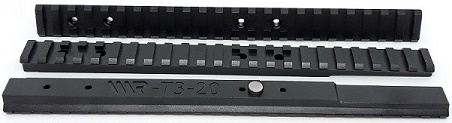

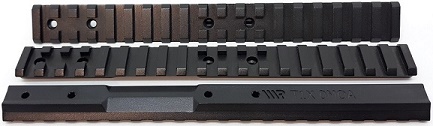

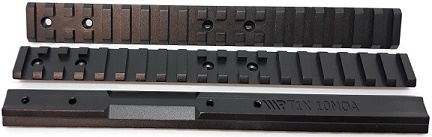

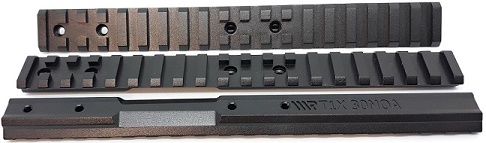

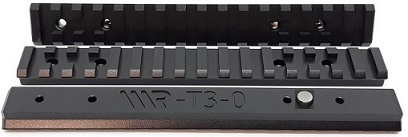

WR PRECISION PICATINNY RAILS - T3, T3x, T1x.
Are you frustrated with the rubbish that costs a fortune?  These rails are THE BEST, designed by a shooter who happens to engineer the best purpose built items on the market.       Design:          Picatinny Rail Mil-spec.
     Material:        Made from aircraft grade 6061 T6 aluminium.
     Finish:           Matt Black Hard Anodise finish.
     PINNED:        T3 rails have recoil transfer assisted thanks to a hard steel pin between the mount and the receiver. VERY FEW DO THIS, hence WR is the BEST!
     Torque:          20 in/lbs
     Mount holes:  Dia 4x 3.5mm / 0.138”
     Screws:         Supplied, T-15 6-48 8.8 high tensile steel screws to max depth black zinc protected coating.
     Rings:           Any Picatinny or Weaver design scope rings or attachment.
     Slotting:        Picatinny spec cross slots full length of rail.
     Strength:       Minimal centre channelling and minimum height but maintain rigidity.

Note: ALL WR T1x rails have a contoured base to hug the top of the T1x receiver (ie. the T1x rail base is not flat like the T3 rail base) to ensure maximum resonance dampening between rifle and sight solution.
Note 2: ALL WR T1x rails are ready for both LH and RH receivers... with clearing chamfers over the ejection port for finger feeding single rounds.
LATEST INFORMATION AVAILABLE FROM www.watersrifleman.com

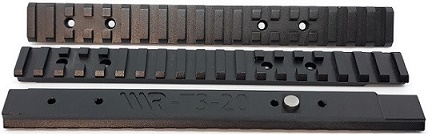

T3 T3x 165 0MOA	T3 T3x 195 20MOA

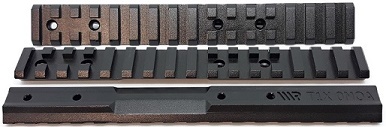

T3 T3x 235 20MOA	T1x 195 0MOA

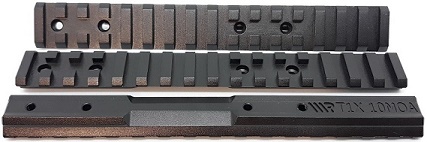

T1x 165 0MOA	T1x 195 10MOA

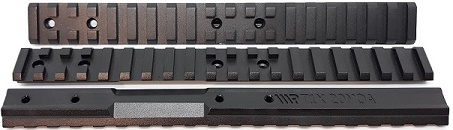

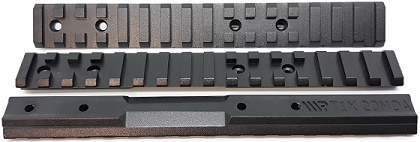

T1x 165 10MOA	T1x 195 20MOA
T1x 165 20MOA	T1x 195 30MOA

WR PRECISION ELR (EXTREME LONG RANGE) EQUIPMENT
ADJUSTABLE SIGHT BASE MOUNT FOR PICATINNY RAIL BASE AND MOUNTS.
Shooting ELR is great, and there are many limitations to do it, mostly around calibre, velocity, drag, etc...  But no matter the firearm, there is one thing that gets in the way of EVERY setup, and that is elevation travel.  If shooting a hot 6mm, or a 50, or everything in the middle, you need to get elevation.  The question is HOW...much...elevation and money.

The typical setup is to run a 20 or 30 MOA base, then use a low power large dia tube scope, with a reticle that has lots of graduations on it.  Then when get out to the far, long, distance targets, you wind down the power and aim off...and do your best to remember the aiming point relative to the point of impact.  That's a lot of work, huh!  It doesn't have to be that hard, and here is the answer...the adjustable WR ELR 240MOA pic rail base...

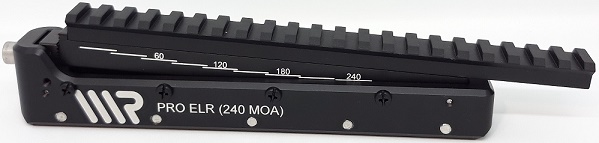

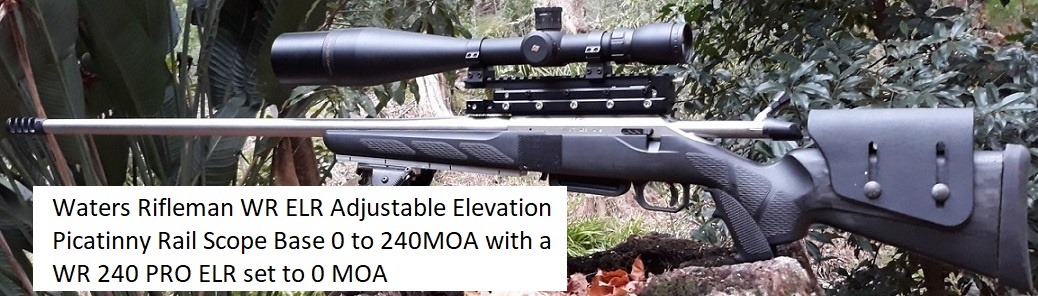

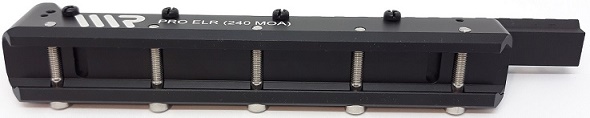

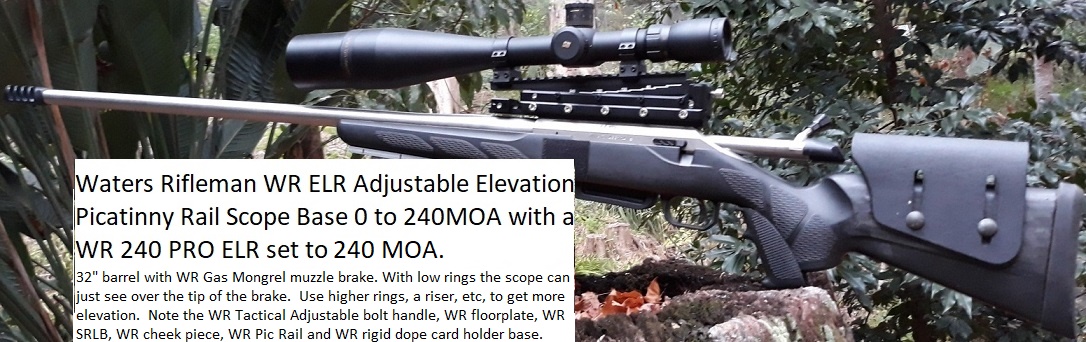

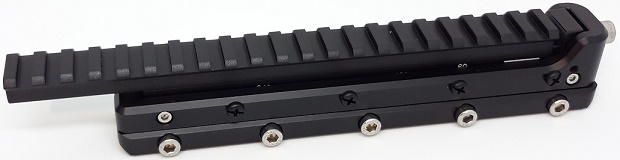

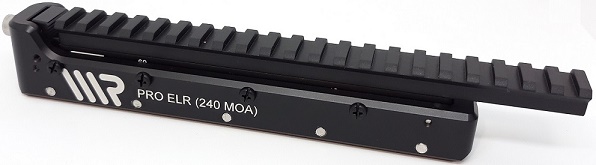

The Waters Rifleman WR Pro ELR 240 adjustable base:
     - Clamps onto the top of your existing picatinny rail mounted on your receiver.
     - Takes your standard pic rail rings with your scope of choice.  Note, that "choice" is now a much larger range of scopes, because this base gives you the elevations...
     - Although a very simply design, has been in the development for over a year, and spent the last year in prototyping and proofing.
     - Is a simple retro fit to any pic rail rifle/scope combo.
     - Is VERY simple to operate, adjusts on the fly, is repeatable and unbreakable.
     - ...and the best bit, this very simple, tough, sturdy, repeatable bit of kit does not have a ridiculous price...and most everybody can enter the game with their current setup.

Specs:
     - Is made of 7075 Alum billet, machined to 0.05mm tolerances, and is made rock solid and tough enough that you could run over it and still use it.
     - 480g / 16.3oz complete ready to fit and use.
     - Finish is black hard anodise with SS fasteners.
     - Increments by 30MOA from 0 to 240MOA. Not, the mount can go higher, however, it is out of design spec for the mount, and is not recommended.
     - Has nylon shim take-up screws to "tune" the mount and ensure it is perfect and repeatable.
     - Has a height from top of rifle pic rail to top of WR mount pic rail of approx 32mm (1 1/4") to give height see over a muzzle brake at 32".
     - WR mount picatinny rail is 215mm / 8.5" long to allow best fixing of very powerful scopes with tubes (unfavourable ELR scopes by fixed mounting, until now).
     - 1 single Cap screws at the rear adjusts the whole mount for all elevations.
     - Very simple design, simple construction, but bulletproof toughness, hence, not expensive and better than the best.
     - 5x pic rail clamping screws also act as recoil lugs on the receiver pic rail.  Base has 2x 10mm wide x 5mm thick slots for optional extra recoil lugs.
     - White laser engraved elevation ladder in MOA on the picatinny rail base - very easy to see and align to.

- PRICE:                AVAILABLE NOW.
LATEST INFORMATION AVAILABLE FROM www.watersrifleman.com


Note: Your scope will need to be zeroed at a given distance based on the base elevation setting you will start your minimum distance at.  It is never recommended to zero a scope close to the bottom of travel.  While this adjustable base is made of minimal parts to great precision, over such a short pivoting distance, a small MOA value could be out of calibration. It is highly recommended you perform a calibration check and record your come-ups on the base mount elevations against shots on a "tall target" at a short distance for comparisons to.  Measure the elevations and check against ballistic data, etc, and create an accurate documented set of elevations for your matches/needs.

LONG BARRELS will probably show up in your scope when the mount is on the full 240 MOA.  More height can be gained through conventional methods, such as a pic rail riser, or very high scope rings, or both.

_________________________________________________________________________________________________________________________________

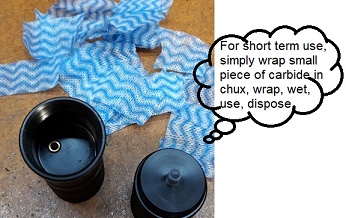

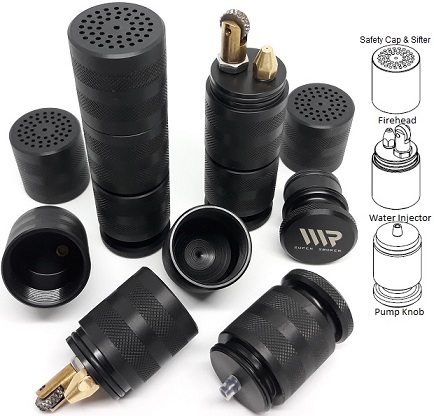

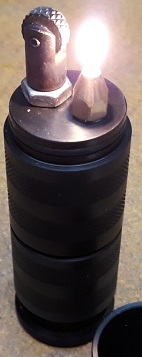

WR SUPER SMOKER - SIGHT SMOKER
For the blackest of sights, and the best reduction of light and glare off the sights...    To Download the instructions, CLICK HERE...

The WR Super Smoker (originally designed and patented by Ray-Vin) is a sight smoker, specifically designed to convert calcium carbide to acetylene, then burn the acetylene with limited oxygen to produce a very black non-reflective soot.  This soot is applied to the sights of firearms (such as rifles and pistols) to prevent any sighting issues due to irregular or undesired light, glare and reflection.  The Super Smoker has been engineered for simple and reliable use, and constructed from materials to offer corrosion resistance and a long trouble-free life.  WARNING: Every smoker must be used in consultation with the instructions.  A yellow instruction declaration is inserted into the smoker to be purposely removed - PRICE:                AVAILABLE NOW.
LATEST INFORMATION AVAILABLE FROM www.watersrifleman.com


________________________________________________________________________________________________________________________________

Pac-Nor When it comes to button pulled barrels, Pac-Nor Rifle Barrels is equally the best in the world.  Pac-Nor barrels are the barrel of choice by many champions world-wide.

Pac-Nor barrels are not Australian made, but they are available in Australia, at the right price, for the Australian rifle shooters to get their hands on precision rifle barrels for both target shooting and hunting.

Simply replacing the factory rifle barrel with a Pac-Nor is a case of purchasing a blank, then taking to a gunsmith to have a chamber cut, and the barrel threaded and fitted to the receiver.  This will give a shooter the best chance to obtain full potential from their rifle.

PAC-NOR manufactures the 'Super Match' barrel, with tolerances uniform from one end to the other, bore diameters within .0003 and grooves within .0001, fabricated using high quality ACCU-TWIST rifling buttons. ACCU-TWIST buttons exhibit the highest level in button technology. They are positioned and indexed using the latest in electro-optical digital measuring equipment. This ensures precise symmetry and proper sizing to less than 50 millionths of an inch. Such high levels of rifling button dimensional accuracy are necessary in order to fabricate barrels having today's fractional M.O.A. accuracy requirements.

PAC-NOR also extensively utilizes "BARREL-SCAN"™, the electro-optical barrel twist measurement system. The "BARREL-SCAN" system allows PAC-NOR to improve twist uniformity which translates into reduced barrel vibration during bullet transition, increased accuracy potential, and reduced barrel fouling.

We carry Pac-Nor barrel blank stock of:
- 22 cal (224) suitable for all your 224 size bullets such as 222, 223, 22PPC, 22-250...
- 243 cal suitable for all your 243 and 6mm size bullets such as 243, 6XC, 6x47 Lapua, 244 Rem, 6PPC, 6BR, 6/08...
- 30 cal (308) suitable for all your 308 size bullets such as 308 Win, 7.62x51, 30-06, 300 Win Mag, 300 Ultra Mag, 300 WSM...

Pac-Nor BARREL BLANKS barrels currently available (as of this printing), ex-Sydney, Australia, ready to be fitted by your gunsmith.

Other calibres, profiles and specifications are available on request - allow for 4 months delivery.

29.5” barrel blanks.
31.5” barrel blanks.
email us:

Krieger

When it comes to cut rifling barrels, Krieger Barrels Inc are globally sort after, and considered one of the best...  And these Krieger barrels are now available in Australia, at the right price.  There are other stockists in Australia offering these Krieger barrels, but we have barrels in stock, at great prices, and Australian shooters have a hassle free process to purchase them.  Refer to the table below for what barrels we offer.

Krieger barrels are considered the best, and this comes at a premium...the price.  We have the commonly used target rifle profile barrels on hand.  Simply replacing the factory rifle barrel with a Pac-Nor is a case of purchasing a blank, then taking to a gunsmith to have a chamber cut, and the barrel threaded and fitted to the receiver.  This will give the best chance to obtain full potential from their rifle.

Some AIHPA shooters have not seen any real advantages between button pulled (Pac-Nor) and Krieger (cut) barrels, but this is subjective to many factors.  At the end of the day, the Krieger brand of rifle barrels is widely used to some great success.

BLANK PROFILE barrels currently available (as of this printing), ex-Sydney, Australia, ready to be fitted by your gunsmith.
Barrels not in stock or listed below can be specially ordered (estimated 7 months delivery).

All prices are plus packaging and postage.
email us:

_________________________________________________________________________________________________________________________________

Crushed Corn Cob polishing and tumbling media.  Click for more info.
We carry 10/14 grit crushed corn cob only.  Other sizes shown for comparison only.

Do NOT pay typical retail prices.  We have seen 2lb (less than 1kg) bags for $10-15 per bag in shops.  CRAZY! Just buy this dry corn cob, add a non wax liquid car polish and done...

20lt plastic resealable drum ea, plus postage and handling. AVAILABLE NOW.
OR
10kg heavy duty paper breathable bag, plus postage and handling. AVAILABLE NOW.
LATEST INFORMATION AVAILABLE FROM www.watersrifleman.com

20lt plastic resealable drum.

_________________________________________________________________________________________________________________________________

                Back to AIHPA Home Page
